1. Test Overview

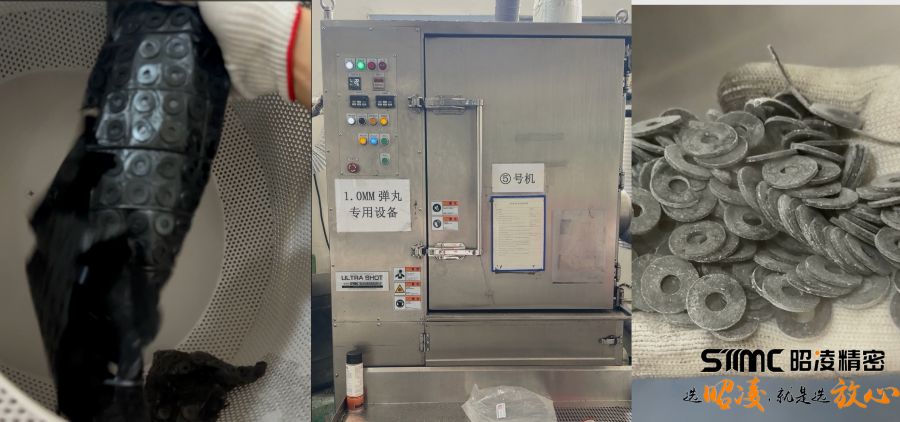

The test specimen is an integrated molded EPDM (Ethylene Propylene Diene Monomer) sealing gasket panel, with uniform ultra-thin flash of 0.15mm formed along mold parting lines. Traditional manual deflashing and blade cutting tend to cause gasket tearing, edge notches, residual flash, severe dimensional tolerance deviation and extremely low mass production capacity. In this batch trial, liquid nitrogen cryogenic deflashing technology from STMC (Nanjing Zhaoling Precision) was adopted. After processing, all individual gaskets on the integrated panel are fully separated automatically without adhesion or residual flash, delivering far superior finishing quality compared with conventional processing methods.
2. Process Principle Tailored for EPDM Properties
The system adopts precise temperature control via liquid nitrogen at -196°C. It leverages the brittleness temperature difference caused by the thickness gap between thin flash and the rubber substrate: the 0.15mm micro flash rapidly becomes brittle under ultra-low temperature, while the thick EPDM gasket matrix retains inherent rubber toughness. High-speed special plastic media blast and impact the brittle flash to precisely break off excess rubber along parting lines. The connected gasket units split naturally along mold contours without scratching or stretching the sealing surfaces of gaskets.
0.15mm flash falls within the optimal processing range for thin rubber flash. The blasting force accurately removes micro burrs without damaging critical dimensional tolerances of sealing gaskets, fully meeting precision requirements for high-end sealing components.
3. Core Test Results
✅️Excellent Separation Performance, Zero Adhesion & Residual Flash

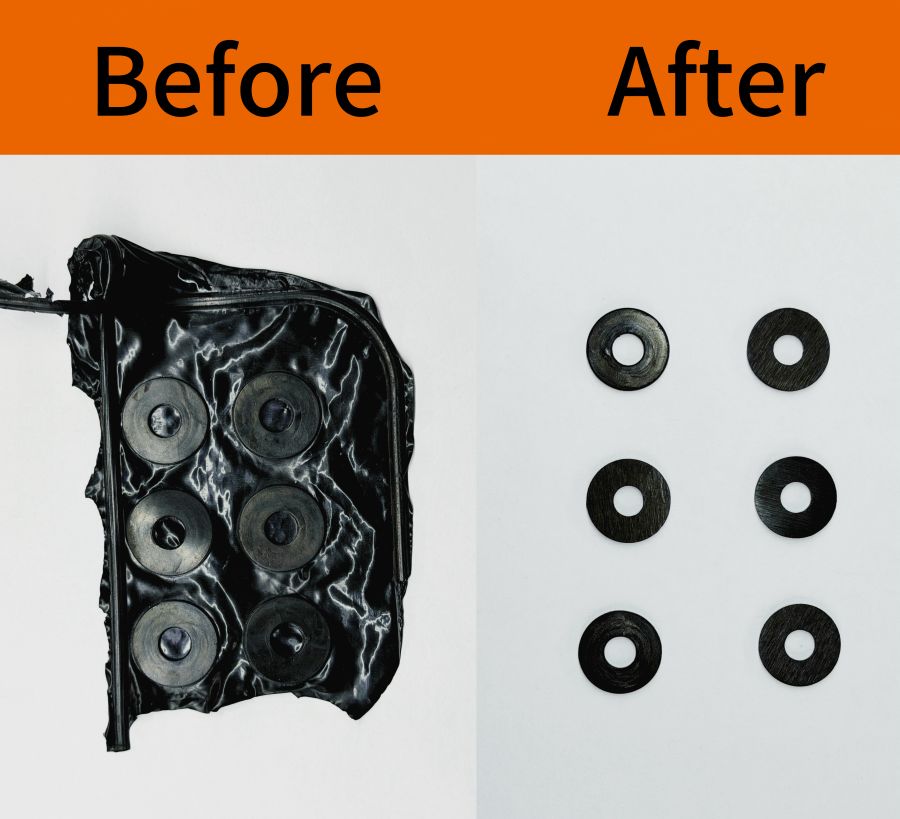

After unloading the integrated gasket panel from the machine, all independent single gaskets separate completely. No inter-piece adhesion, no drawn residual flash, smooth parting lines and zero excess rubber residue. Secondary manual inspection and cleaning are eliminated entirely.
✅️Ultra-High Deflashing Precision with Zero Dimensional Deviation
Micron-level deflashing accuracy is achieved. Sealing edges of gaskets are smooth and rounded without blade marks or whitening deformation. Thickness, outer and inner diameter tolerances remain consistent. Common defects from manual work such as unilateral material loss and over-cutting are avoided, complying with high-precision assembly standards for new energy, pipeline and mechanical equipment sealing parts.
✅️Ultra-High Mass Production Efficiency & Labor Replacement
Multiple integrated EPDM gasket panels can be loaded per single batch, with full processing finished within minutes. One cryogenic deflashing machine delivers daily output equivalent to dozens of manual workers. 24-hour continuous automatic operation drastically shortens delivery cycles and resolves post-molding capacity bottlenecks for mass-produced sealing gaskets.
✅️Original EPDM Physical Properties Fully Preserved
Low temperature only acts on thin flash. Hardness, resilience, weather resistance and sealing performance of the gasket matrix remain unchanged. No rubber cracking or sealing failure induced by high-temperature treatment or blade cutting, with stable finished product yield over 99%.
4. Industrial Application Value
EPDM gaskets are widely applied in automotive, HVAC, water treatment and construction machinery sealing. Integrated panel molding is the mainstream production method, while 0.1–0.2mm thin flash is a universal industry pain point. This test verifies mature technical advantages of STMC cryogenic deflashing for integrated EPDM gasket panels:
✅️Eliminate two working procedures: manual separation and manual flash scraping
✅️Uniform surface appearance quality, eliminate human-caused defects like uneven edges and notches
✅️Reduce post-processing labor costs, ideal for large-scale mass production of precision rubber gaskets
5. Conclusion
For integrated molded EPDM panels with 0.15mm thin flash, STMC cryogenic deflashing realizes one-stop processing featuring automatic full separation, flash-free surfaces, ultra-high precision and outstanding efficiency. It thoroughly addresses industry pain points of difficult separation, poor finishing and low productivity in traditional processes, standing as the optimal post-molding finishing solution for mass production of precision EPDM sealing gaskets.
Post time: Jun-29-2026
